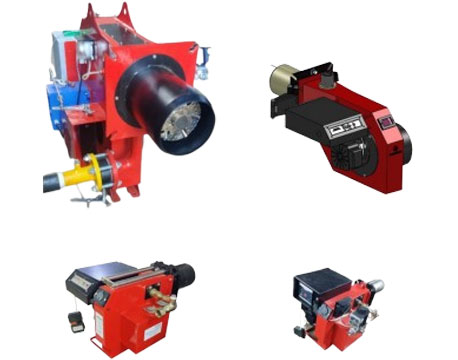

Monoblock Burners
HOTPOWER-FM series burners are compact in construction, energy efficient, simple in design, easy to install and commission. They are generally suitable for low temperature applications (up to 350°C). Several models are available ranging from 2 kg/hr to 600 kg/hr.
APPLICATIONS
Boilers
Textile stenters
Air/Oil/Water heaters
Powder/ paint oven
Drying and curing Ovens
Annealing oven
Small crucible furnaces
Ageing ovens
Roller heating
Roasters, fryers, bakers
Capacity Table
| Burner Model | Heat Output (KW) | Fuel | Firing Modulation |
|---|---|---|---|
| FM10 | 22-116 | Oil/Gas | One/Two Stage |
| FM20 | 47-233 | Oil/Gas | One/Two Stage |
| FM30 | 87-349 | Oil/Gas | One/Two Stage |
| FM40 | 116-465 | Oil/Gas | One/Two Stage |
| FM60 | 174-698 | Oil/Gas | One/Two Stage/Modulating |
| FM100 | 291-1163 | Oil/Gas | Two Stage/Modulating |
| FM160 | 465-1860 | Oil/Gas | Two Stage/Modulating |
| FM240 | 689-2791 | Oil/Gas | Two Stage/Modulating |
| FM320 | 970-3721 | Oil/Gas | Two Stage/Modulating |
| FM450 | 1308-5233 | Oil/Gas | Two Stage/Modulating |
| FM600 | 1744-6977 | Oil/Gas | Two Stage/Modulating |
